Understanding Bike Geometry: Reach, Stack, and Head Angle Explained

Geometry charts look intimidating, but a handful of key numbers explain most of the difference in how two mountain bikes actually feel on the trail.

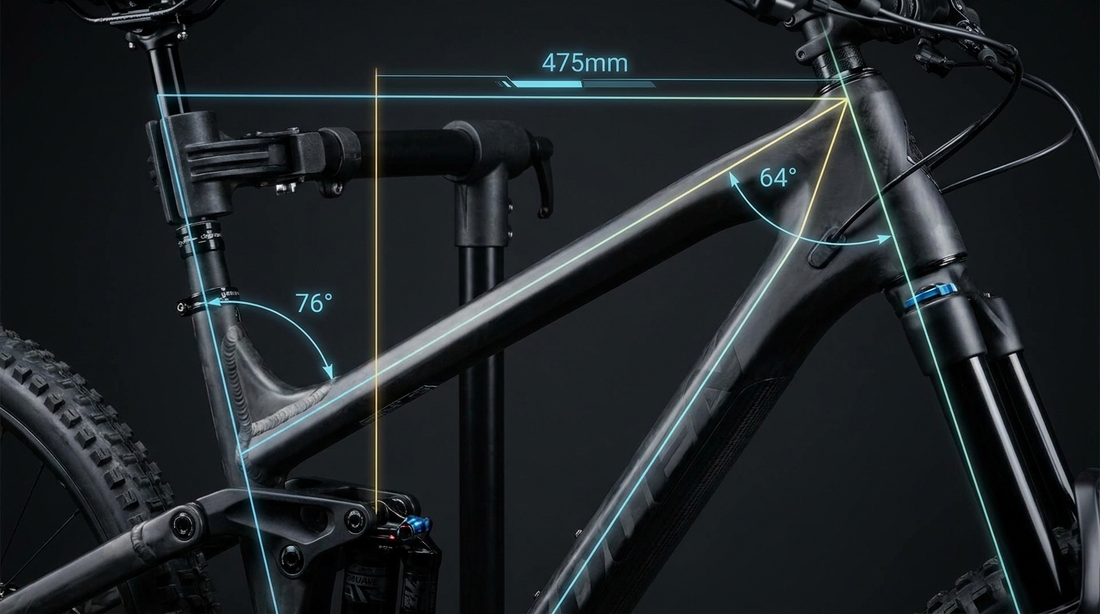

Reach: Your Effective Cockpit Length

Reach measures the horizontal distance from the bottom bracket to the top of the head tube — essentially how stretched out you are on the bike. Longer reach generally means more stability at speed and more room to move around on technical terrain; shorter reach feels more upright and nimble at low speed.

Stack: Your Riding Height

Stack measures the vertical distance from the bottom bracket to the top of the head tube — how "tall" the front end sits. Higher stack gives a more upright, comfortable riding position; lower stack puts you in a more aggressive, aerodynamic stance.

Head Angle: Steering Feel and Stability

Head angle (also called head tube angle) measures how slack or steep the front end is. Slacker angles (around 63-65 degrees on modern enduro/downhill bikes) improve high-speed stability and confidence on steep terrain, at the cost of slower, less snappy low-speed handling. Steeper angles (67-70 degrees, common on XC bikes) feel quicker and more responsive at low speed but less planted at high speed on rough terrain.

Chainstay Length: Playfulness vs. Stability

Shorter chainstays (the distance from the bottom bracket to the rear axle) make a bike feel more playful and easier to manual or pop off small features. Longer chainstays add stability, particularly at speed and on climbs.

How These Numbers Work Together

No single geometry number tells the whole story — a slack head angle paired with short chainstays and long reach (common on modern trail/enduro bikes) creates a bike that's stable at speed but still playful, which is why geometry trends have shifted this direction over the past several years.

Using Geometry Charts When Bike Shopping

Compare reach and stack relative to your current bike (if you have one) rather than trying to interpret numbers in isolation — the delta between your current fit and a prospective new bike tells you more than any single absolute number.

Geometry isn't just a spec sheet curiosity — it's arguably a bigger factor in how a bike actually feels than suspension travel or wheel size alone.
